| Model NO. | HS-298 |
| Application | for Commercial |
| Portable | Non Portable |
| Certificate | CE0197, ISO13485, FDA 510K |
| Feature | Pigment Removal, Tattoo Removal |
| Wavelength | 1064/532nm |
| Beam Profile | Flat-Top Mode |
| Pulse Width | 300PS or 450PS |
| Pulse Energy | 500mj (1064nm), 250mj (532nm) |
| Spot Size | 2-10mm |
| Cooling System | Air & Advanced Cooling System |

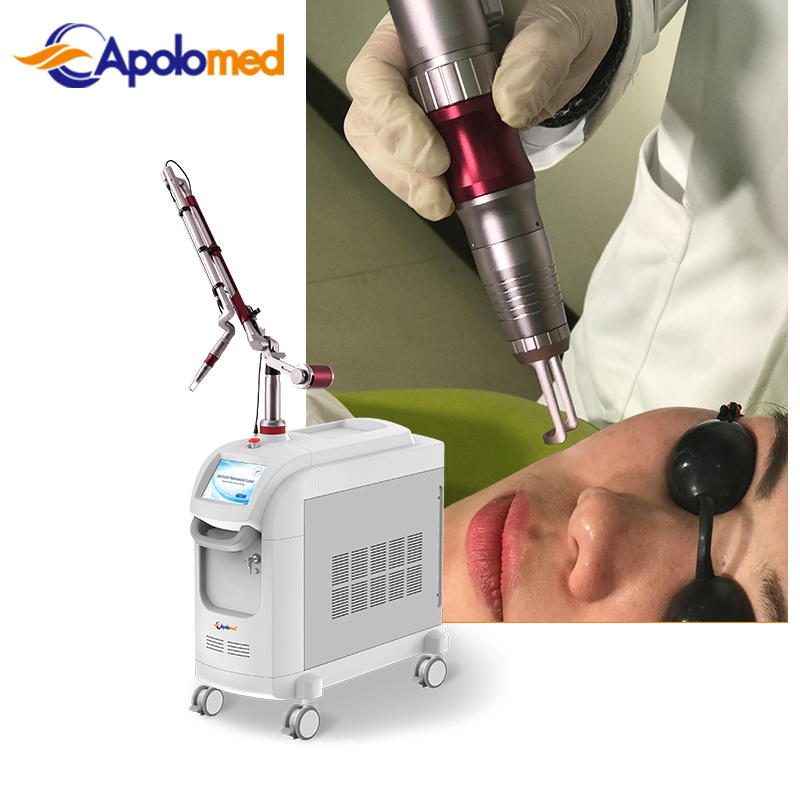

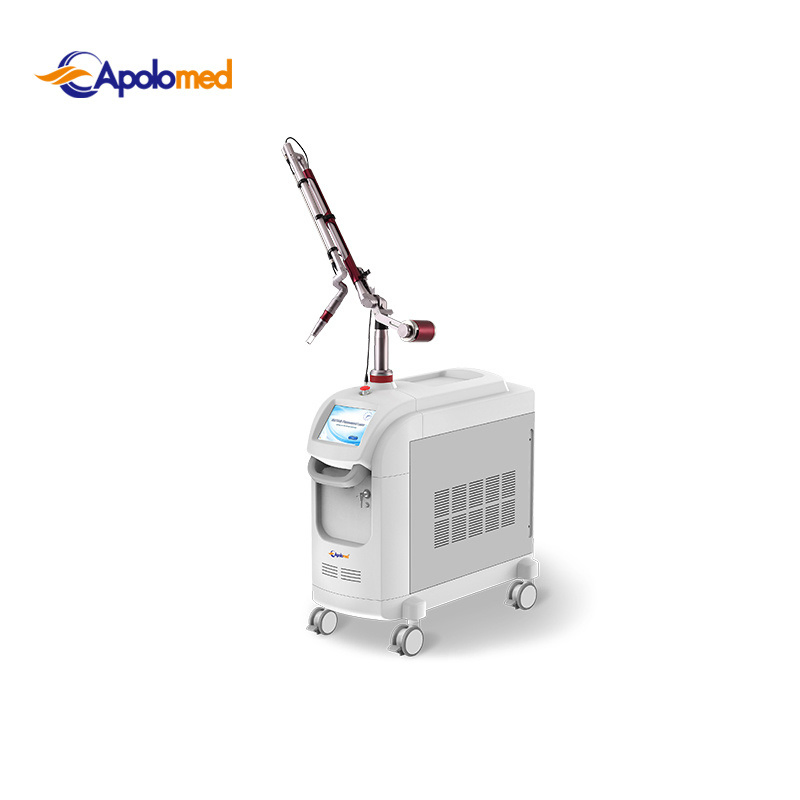

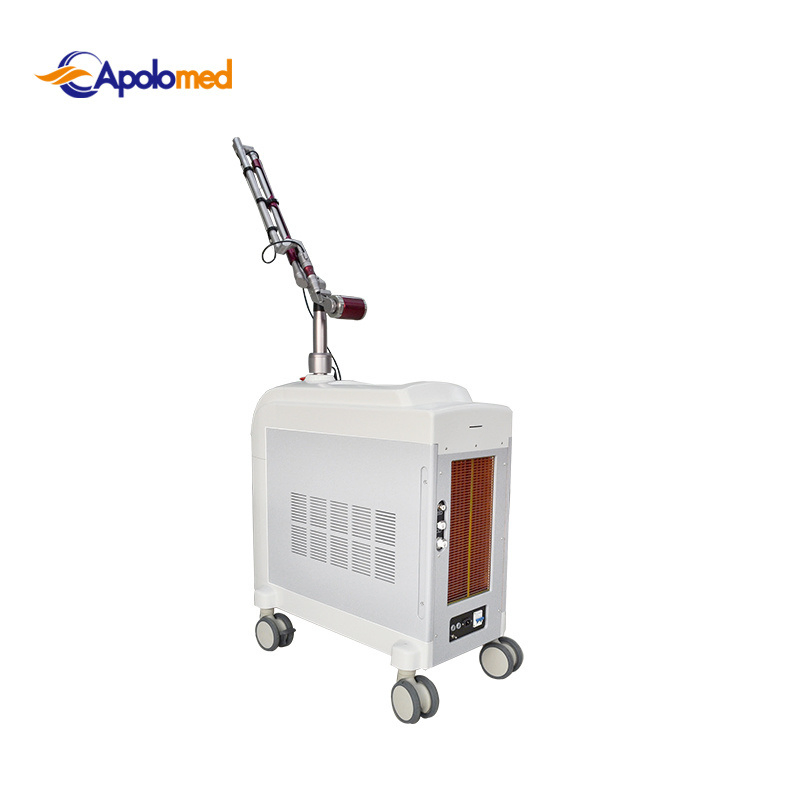

The Picosecond Nd:YAG laser is an innovative aesthetic laser specifically designed to treat tattoos and pigmented lesions. By delivering ultra-short pulse bursts of energy in trillionths of a second, it creates a photomechanical effect that shatters ink into dust-like particles without damaging surrounding tissue.

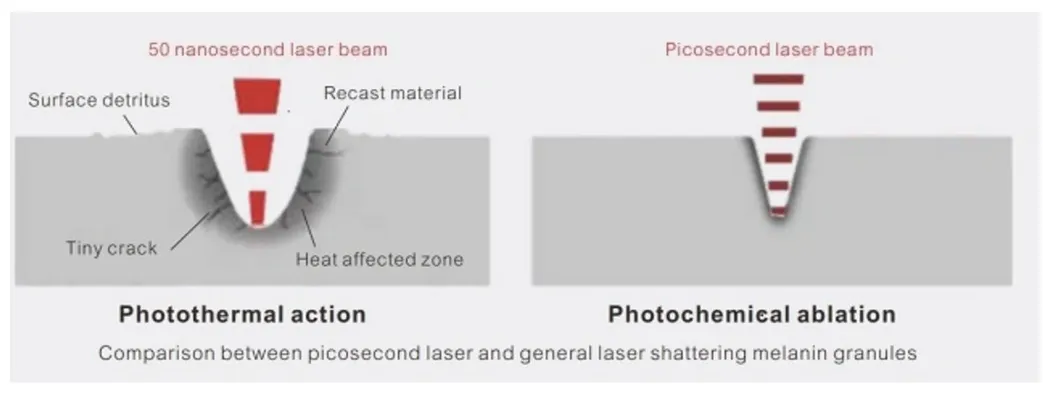

Photomechanical Technology

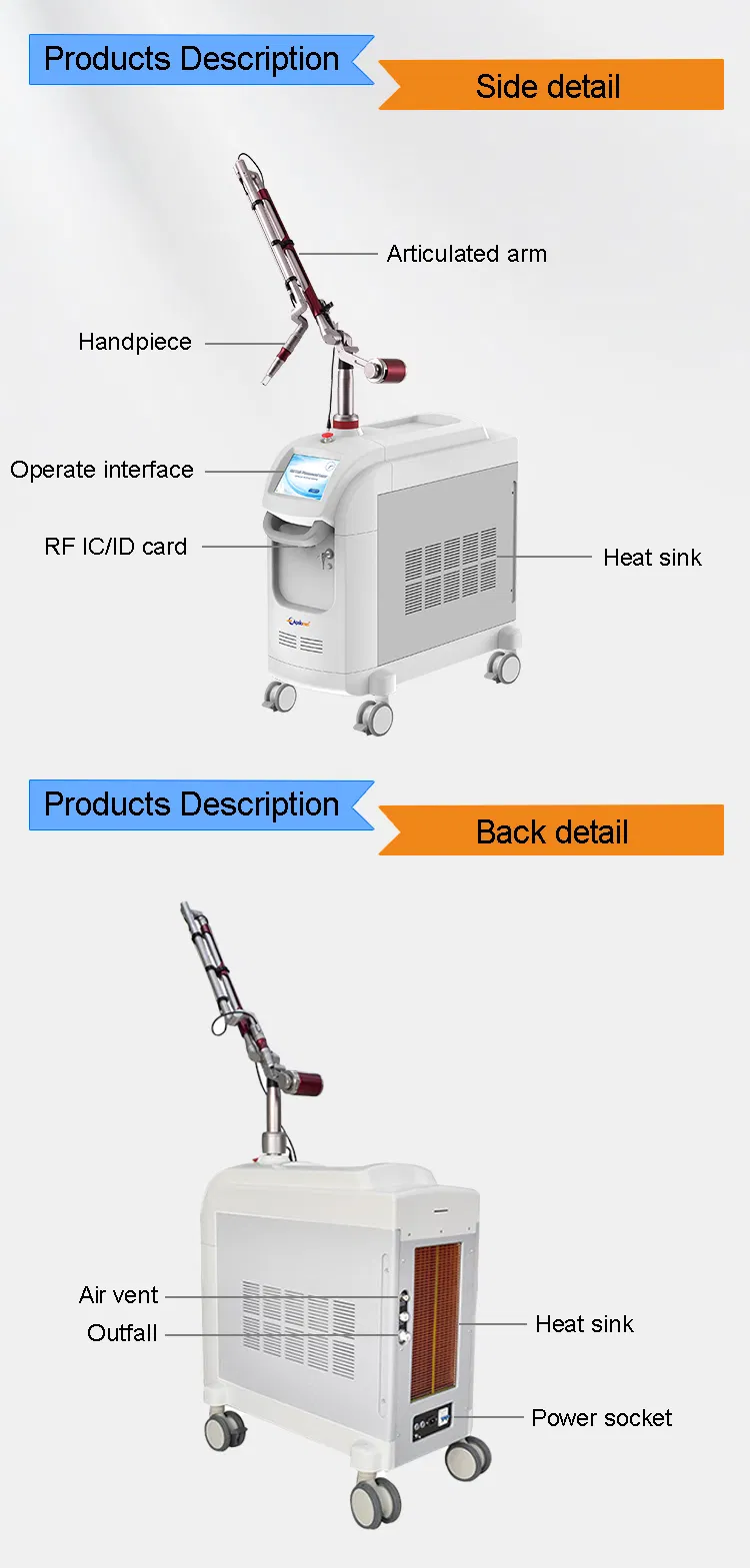

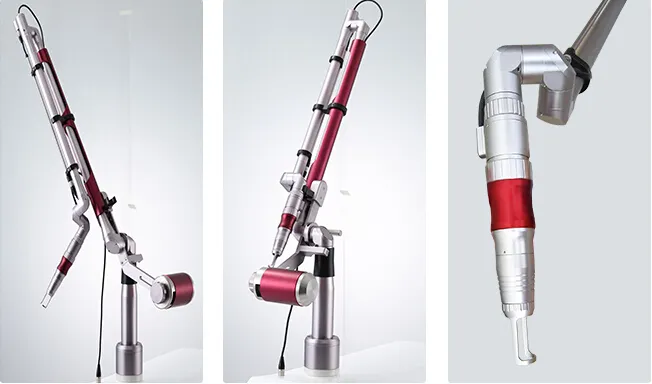

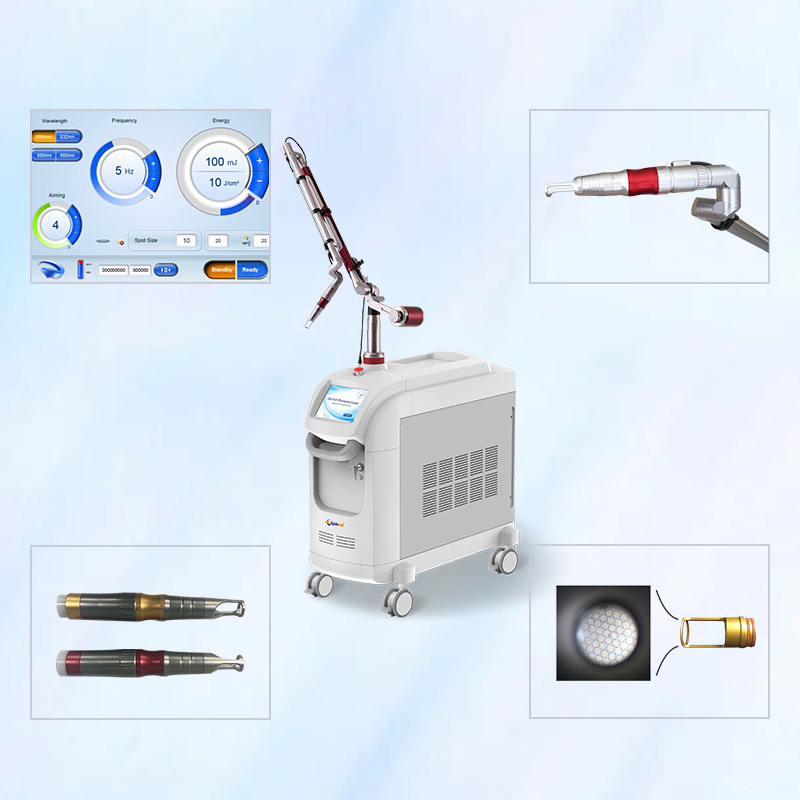

7 Jointed Articulated Arm

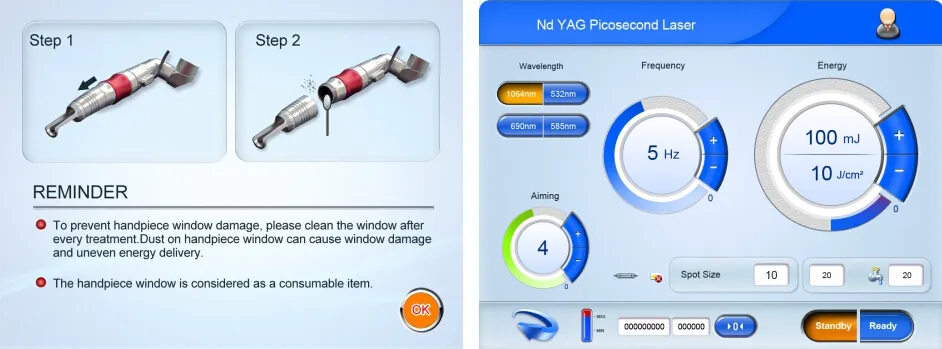

Android Intelligent Software
| Parameter | Detail |
|---|---|
| Laser Type | Picosecond Nd:YAG Laser |
| Wavelength | 1064nm / 532nm |
| Pulse Width | 300ps / 450ps |
| Energy | 500mJ (1064nm) / 250mJ (532nm) |
| Repetition Rate | 1 ~ 10Hz |
| Spot Size | 2 - 10 mm |
| Screen | 9.7" True Color Touch Screen |
| Dimension | 97*48*97cm |
| Weight | 130kg |

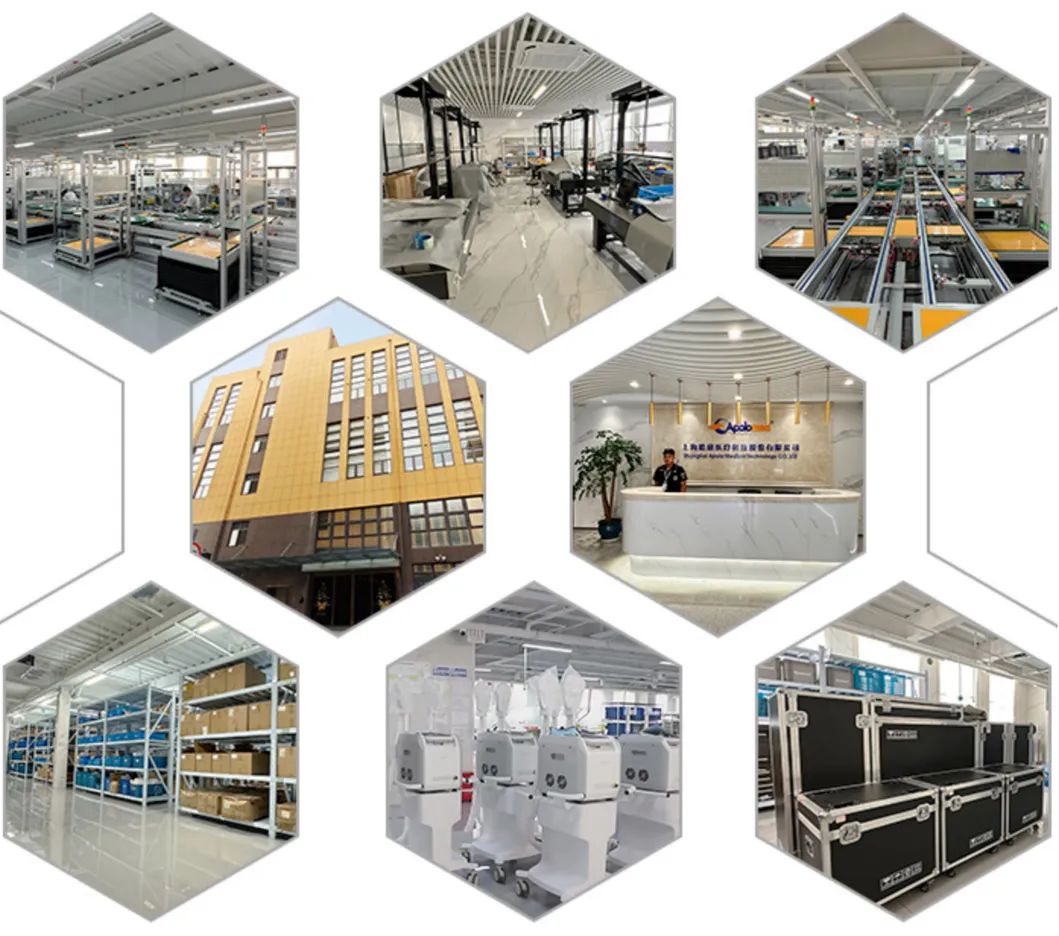

Our equipment is manufactured strictly in accordance with ISO 13485 standards. All products comply with Medical CE certificates (MDD & MDR) and have obtained high-end certifications including US FDA 510K, Australia TGA, and Brazil Anvisa.
