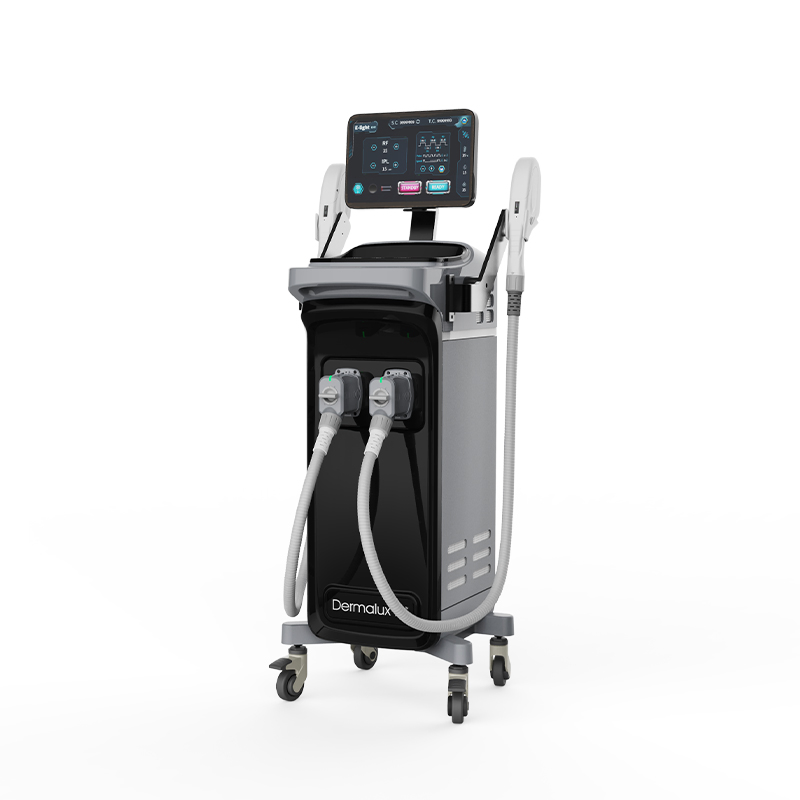

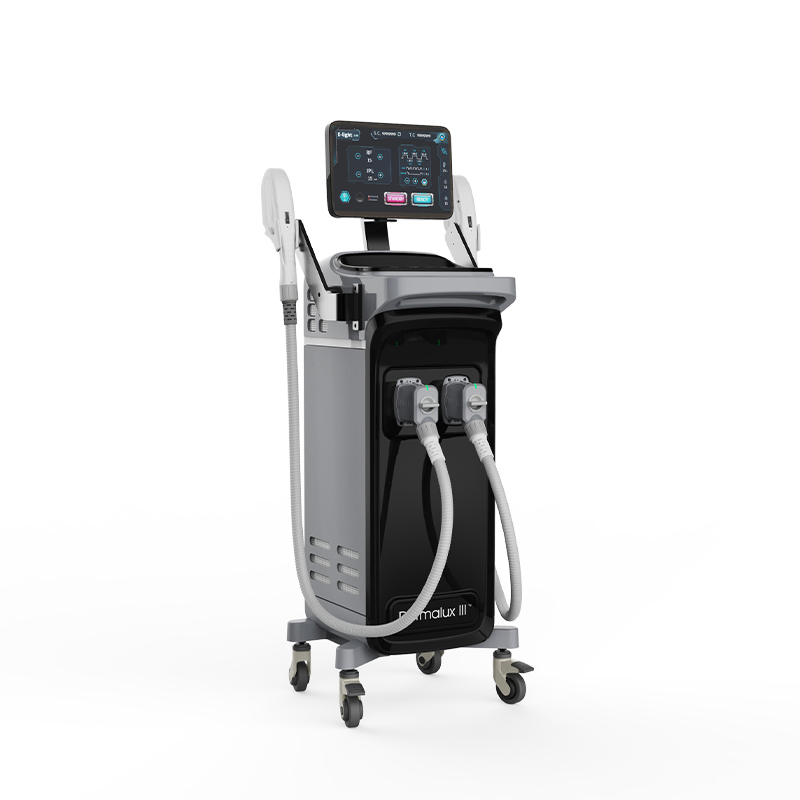

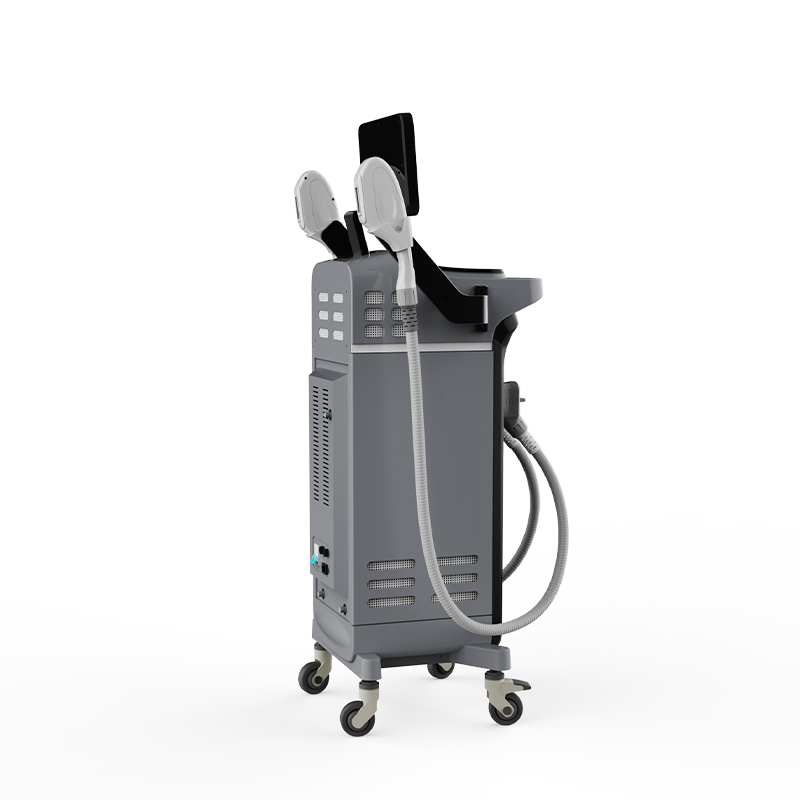

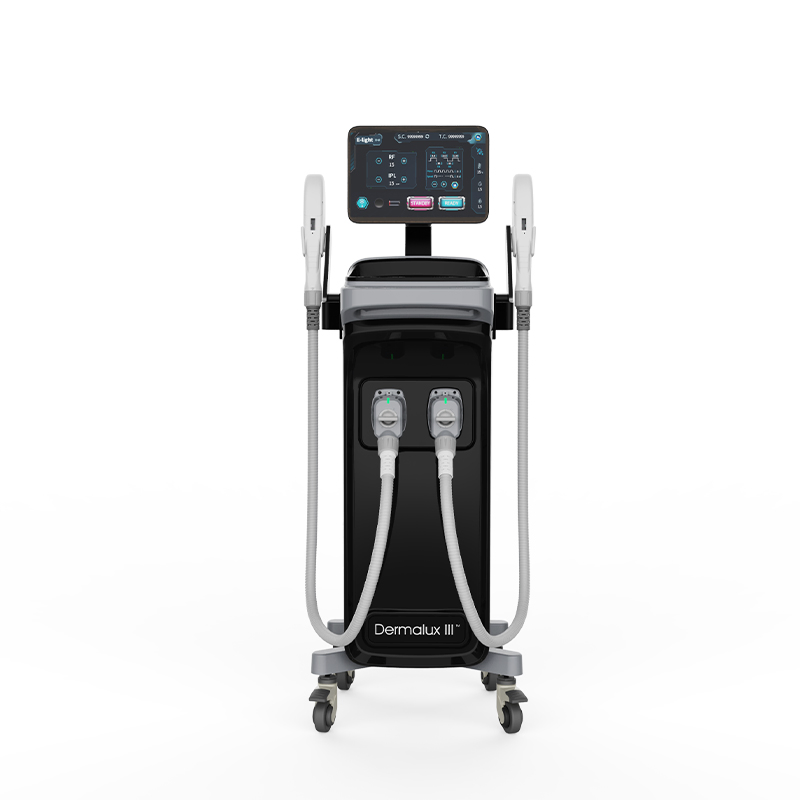

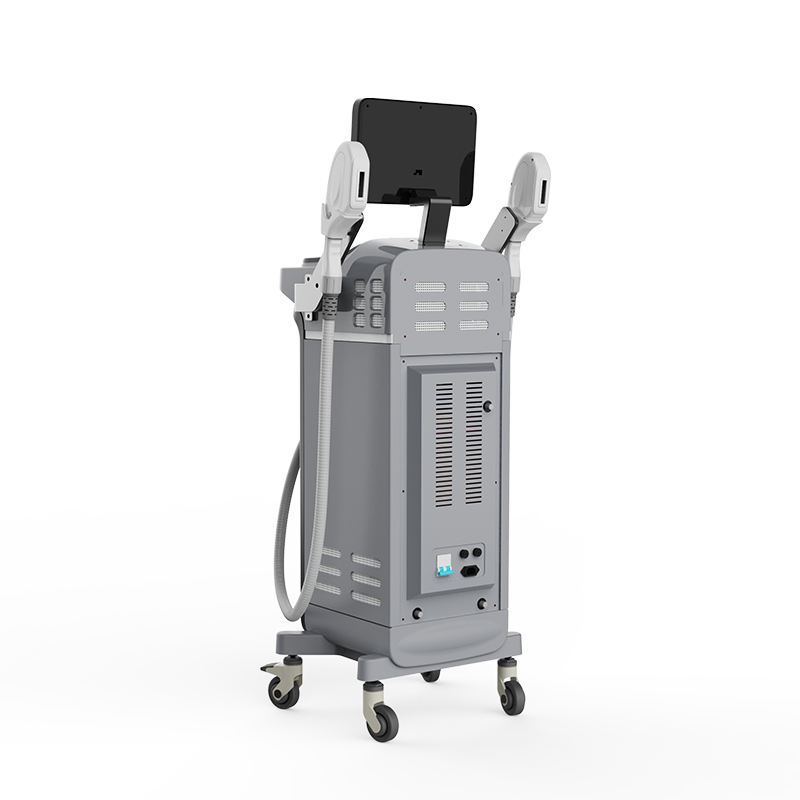

High Frequency Blue Light Photo Rejuvenation IPL Laser Treatment Machine Acne Clearance

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
ESHR50
Spot Size
8*34mm(SSR) 16*50mm (Super Hair Removal)
Energy Density
IPL Mode 10-60j/ Cm2; RF: 1-50j/Cm2
Frequency
1-10Hz
Safety Class
Class I Type B
Package
Aluminum Box
Specification
37*41*115
Capacity
500 units
IPL Laser Treatment Machine

Technical Parameters

Technology Super Hair Removal / Intense Pulse Light
Wavelength 530-1200nm, 640-1200nm
Output mode Pulsed
Input Power 3000W
Transmission Crystal light system
Screen size 12 inch touch color screen
Energy density IPL Mode 10-60J/cm2; SHR Mode 1-15J/cm2
Pulse width 1-10ms
Crystal Temperature -5 to 30ºC
Cooling System Semiconductor + water + air
Function Hair removal, skin rejuvenation, skin tightening, pigmentation
Power supply AC220V±10% 20A / 110V±10% 25A (50-60Hz)

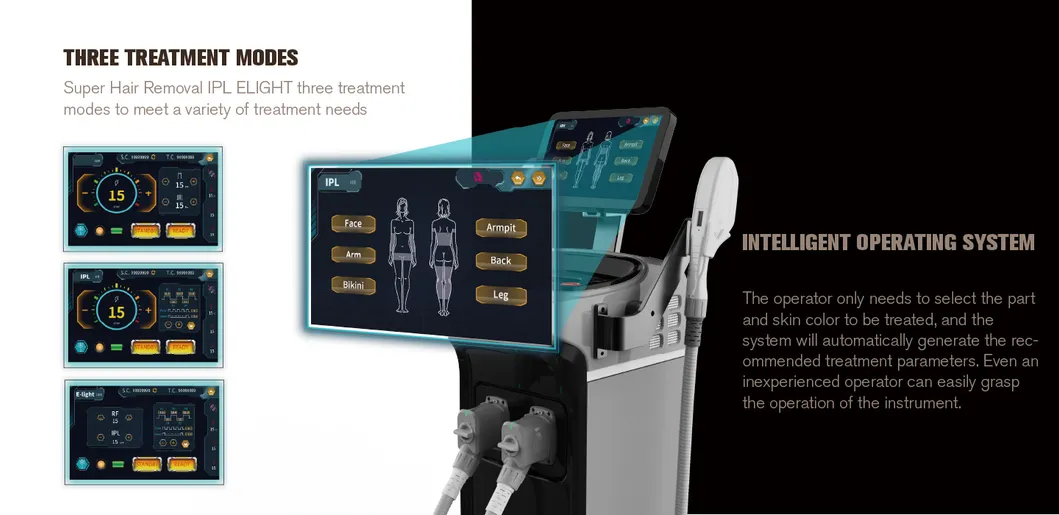

IPL Treatment Device View 1

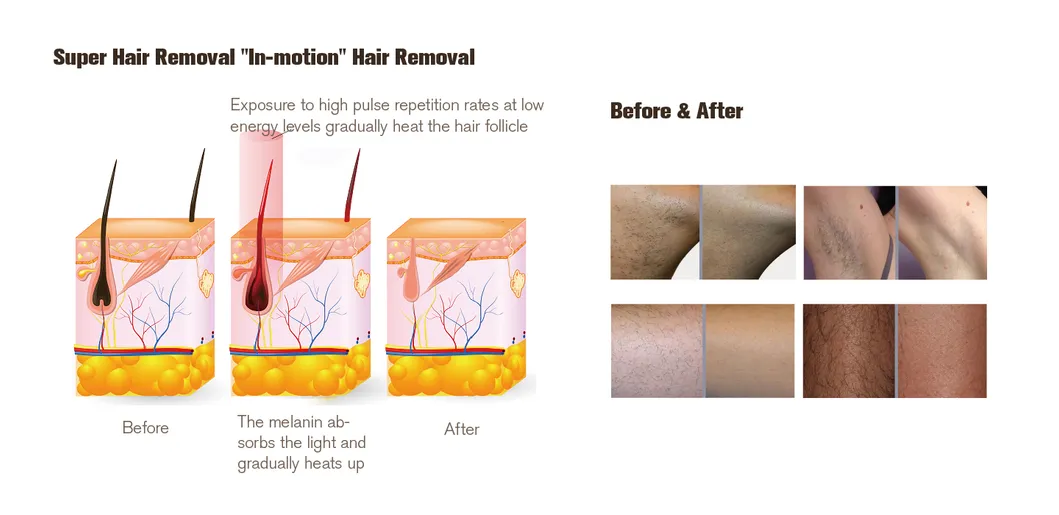

IPL Treatment Device View 2

Innovation in IPL Technology

Super Hair Removal is the latest breakthrough innovation in IPL technology to launch onto the ever-advancing beauty and aesthetics market. IPL technology generates intense bursts of red or blue light that heat the dermal tissue without harming or removing the outer epidermal layers of the skin. The body's natural processes then work to break down and remove skin imperfections, visibly reducing their appearance.

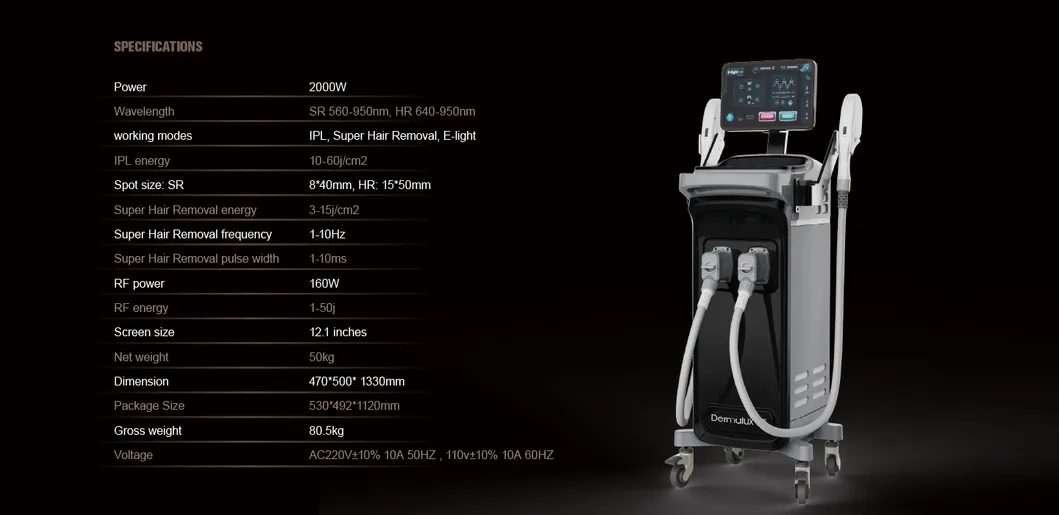

Clinical Application 1

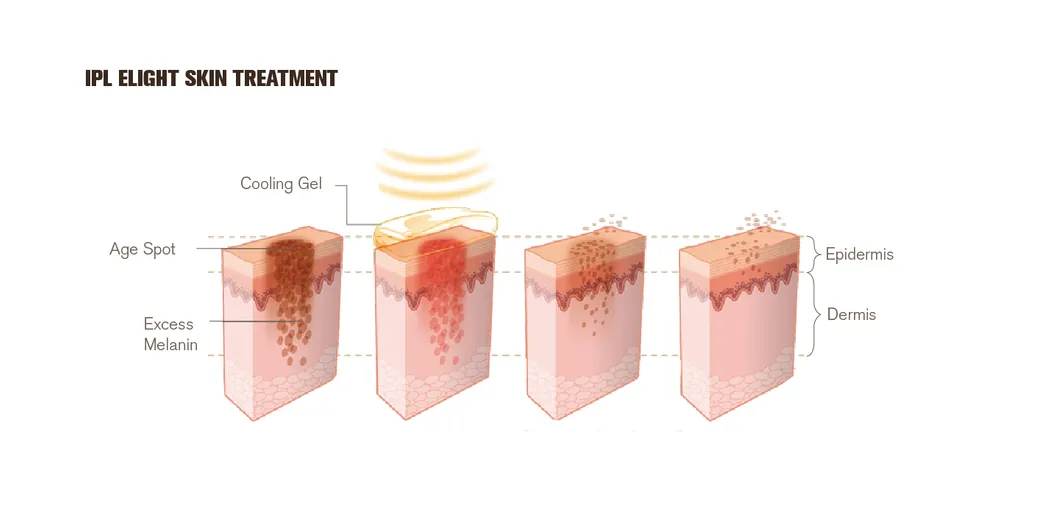

Clinical Application 2

Core System Advantages

1
REAL-TIME INTELLIGENT MONITORING SYSTEM

Equipped with 20 intelligent detection functions, including water flow, water temperature, handle temperature, handle connection, and water level. This ensures machine stability and early detection of potential issues.

2
2000W HIGH POWER OUTPUT

Ensures high output energy that does not decay even in fast light mode, guaranteeing superior treatment effects for all patients.

3
ADVANCED COOLING SYSTEM

A combination of semiconductor, water, and air cooling ensures the handle surface remains cool and the treatment is always comfortable. The system allows the machine to work continuously for 24 hours without thermal damage.

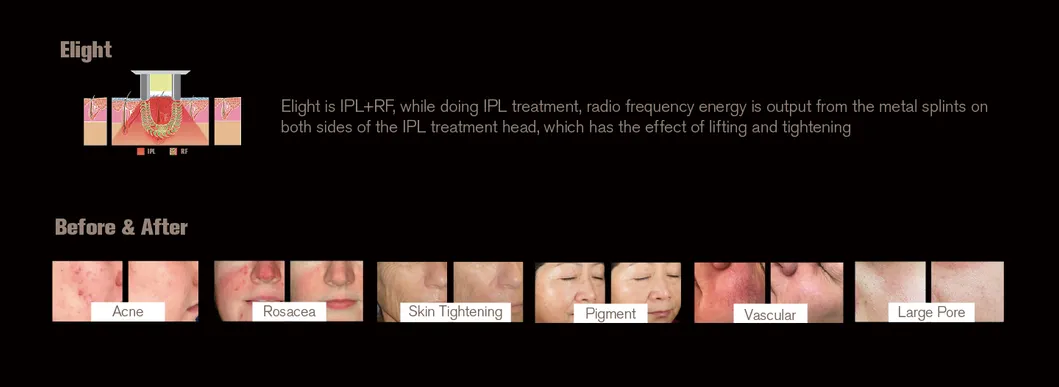

System Interface

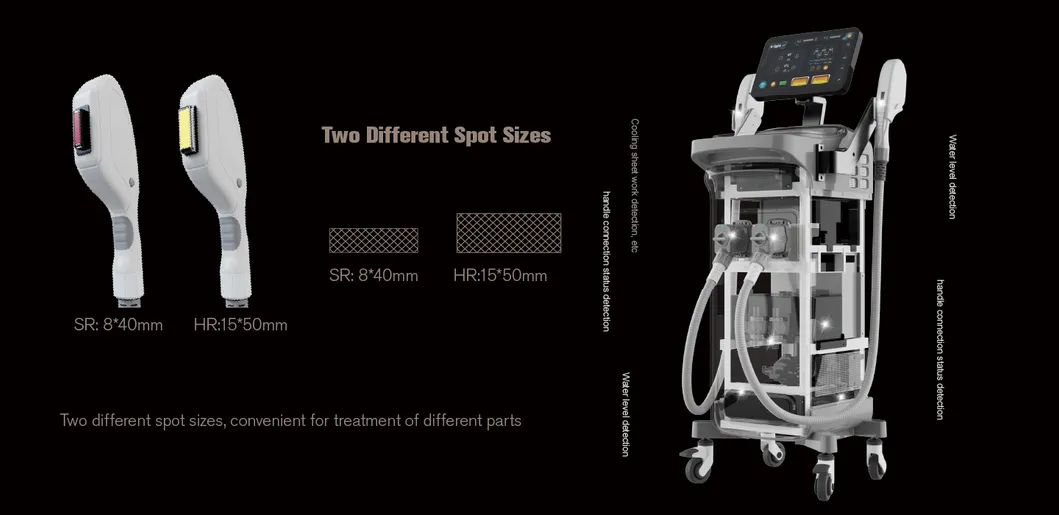

Internal Components

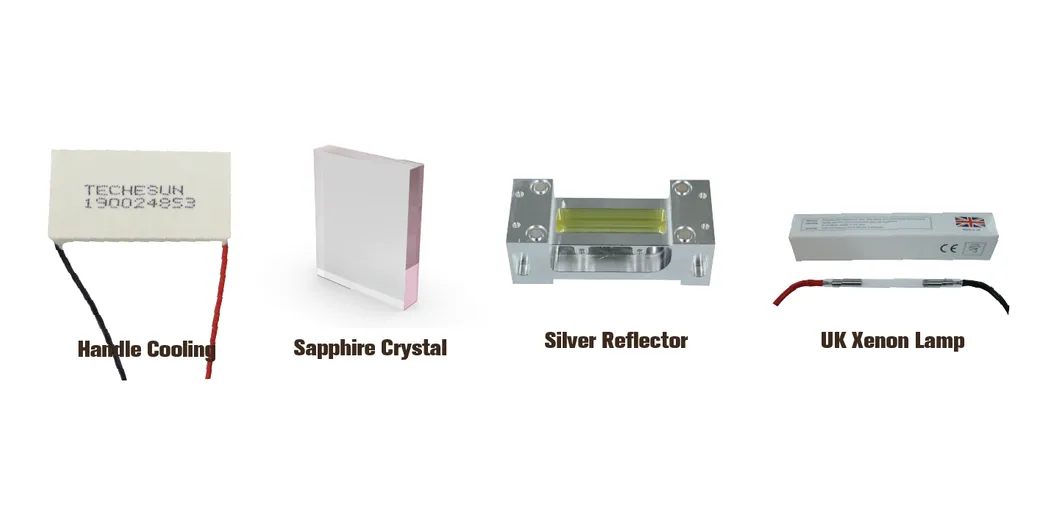

Treatment Handle

Frequently Asked Questions

1. What are the primary functions of this machine?
The ESHR50 system is designed for professional hair removal, skin rejuvenation, skin tightening, and pigmentation treatment using advanced IPL technology.
2. How does the intelligent monitoring system benefit the user?
It features 20 detection functions that monitor vital parameters like water flow, temperature, and connections in real-time to ensure the equipment remains stable and safe during operation.
3. Is the treatment painful for the patient?
No. Thanks to the strong integrated cooling system (semiconductor + water + air), the crystal temperature is maintained between -5 to 30ºC, ensuring a comfortable and cool experience on the skin surface.
4. Can this machine handle high-volume clinical work?
Yes, the robust cooling and 3000W input power allow the machine to work continuously for up to 24 hours without risk of damage from high temperatures.
5. What wavelengths are used for treatment?
The system supports multiple wavelengths including 530-1200nm and 640-1200nm, which target different skin depths for various aesthetic treatments.
6. What is the difference between IPL and SHR modes?
IPL mode offers higher energy density (10-60J/cm2) for specific targeted treatments, while the Super Hair Removal (SHR) mode uses a faster frequency (1-10Hz) and lower energy (1-15J/cm2) for rapid, effective hair removal.
